Einzelheiten zu den Produkten

Created with Pixso. Zu Hause Created with Pixso. Produits Created with Pixso.
Sandschraubwascher
Created with Pixso.

Industrial Double-Spiral Screw Classifier Sand Washing Machine for Fine Sand Gravel Grit Silica Washing

Industrial Double-Spiral Screw Classifier Sand Washing Machine for Fine Sand Gravel Grit Silica Washing

Markenbezeichnung: WeSeW
Modellnummer: Kai001
MOQ: 1pcs
Preis: US$20,000~US$80,000 per pc
Zahlungsbedingungen: T/T, Western Union
Versorgungsfähigkeit: 10000pcs pro Monat
Ausführliche Information
Herkunftsort:
CHINA
Zertifizierung:
CE,UL
Material:
Edelstahl/Brauch
Materialmerkmal:
Hitzebeständig, feuerresistent
Anwendung:
Chemische Industrie, Getreidetransport, Bergbautransport, Kraftwerk
Kernkomponenten:
Motor
Dimension (l*w*h):
Angepasst
Spezifikation:
Angepasst
Struktur:
Fördersystem
Verpackung Informationen:
Holzkoffer
Versorgungsmaterial-Fähigkeit:
10000pcs pro Monat
Hervorheben:

Fine Sand Gravel Grit Silica Washing Sand Screw Washer

,

Industrial Spiral Sand Washer

,

Double-Spiral Screw Classifier Sand Washing Machine

Beschreibung des Produkts
Industrial Double-Spiral Screw Classifier Sand Washing Machine
The double-screw sand washer is a high-efficiency industrial solution for washing fine sand, gravel, grit, and silica. This robust equipment operates on the principle of differential sedimentation velocity to classify particles between 1.5mm-0.03mm, effectively separating waste mud and water from valuable ores.
Product Specifications
Product Name Industrial Spiral Screw Classifier Sand Washing Machine
Key Feature Spiral sand washing machine
Motor Type AC Motor
Capacity 6-400t/h
Core Components Bearing, Gearbox, Motor
Weight 500 KG
Applications Motorway construction, hydropower projects, building material washing, classification, and contaminant removal
Key Advantages
  • Low power consumption with high classifying efficiency
  • Heavy-duty construction for extended working life
  • Dual control system (manual and electric lifting device)
  • Adjustable weir height with rigid tank structure
  • Minimal loss of medium-fine sand and stone powder
  • Energy-efficient operation with large processing capacity
  • Environmentally friendly design with water recycling capability
Operational Features
This spiral classifier serves as mechanical grading equipment in beneficiation processes. The double-spiral design efficiently filters coarse material while discharging fine material through the overflow tube. It's particularly effective for ore washing, desliming, and dehydration applications.

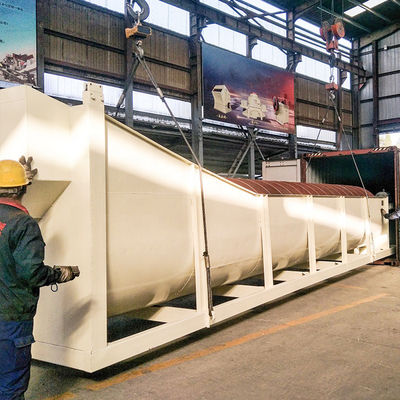

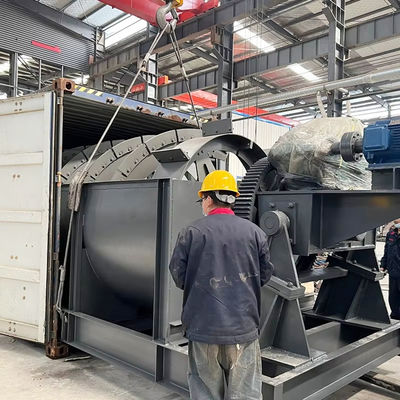

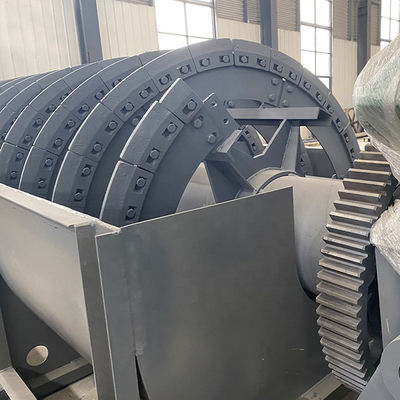

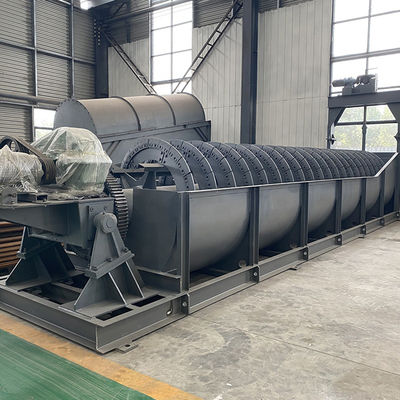

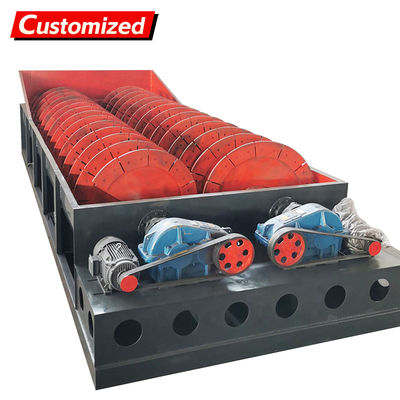

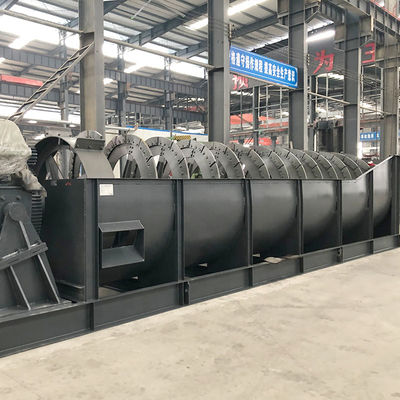

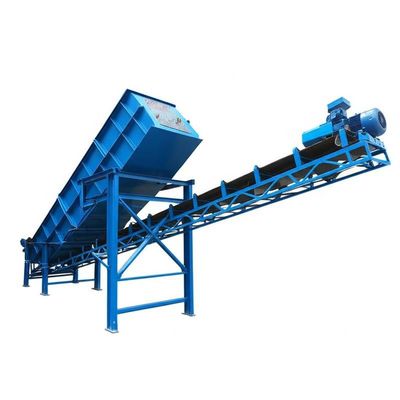

Product Gallery
